CD10 (A) explosion-proof wireless composite gas detector [5-inch touch screen + multi-gas detection + over-limit sound and light alarm + cloud platform + explosion-proof] (2nd generation)

Produkt-Beschreibung

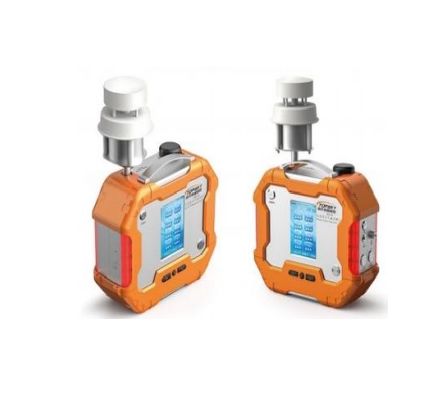

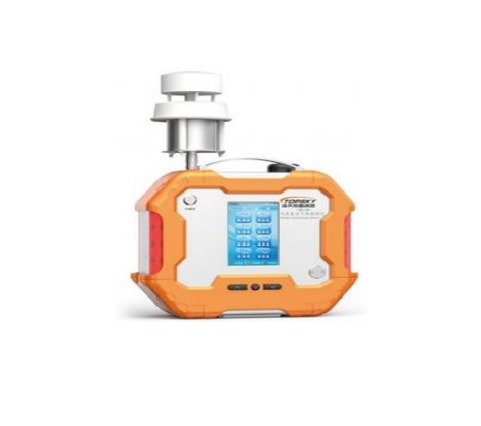

CD10 (A) explosion-proof wireless composite gas detector

[5-inch touch screen + multi-gas detection + over-limit sound and light alarm + cloud platform + explosion-proof] (2nd generation)

PRODUCT INTRODUCTION

CD10 (A) Explosion-Proof Wireless Composite Gas Detector (Multi-parameter Analyzer) can detect various gases including flammable gases, toxic and harmful gases, and organic volatile compounds (VOCs). It can continuously monitor up to eight gases (priority: LEL, NO2, CO, CO2, HCL, H2, O2, VOC) simultaneously, along with meteorological data (optional) (wind direction, wind speed, temperature, humidity). The collected gas data, GPS location, and environmental parameters are transmitted via 4G to the regulatory backend for wireless management. The instrument features gas concentration calibration, over-limit alarm functions, and immediate audio-visual alerts when the collected data exceeds limits, uploading the current data to the platform. Multiple detectors can upload their monitoring and surveillance information, establishing a multifunctional monitoring and control system platform for special work environments, ensuring the safety of personnel. It adopts the latest mainstream design, with an aesthetically pleasing and durable protective cover around the entire unit. The bottom of the instrument has tripod mounting holes, making it easy to quickly set up and deploy during operations, suitable for various complex working conditions.

PRODUCT FEATURES

1. Multi-parameter detection: detect a variety of gases, can simultaneously detect the concentration of 8 kinds of gases

2. Multiple alarm modes: gas concentration alarm, gas sensitivity alarm, calibration date alarm functions, custom threshold setting, sound and light alarm when exceeding

3. Dual working modes: diffusion mode and pump suction mode can be switched at will

4.4G function: the background displays gas concentration, electricity quantity, meteorological information, historical data and concentration curve

5. Historical data curve: can store historical data to view historical data and concentration curve

6. Light and integrated: the integrated design is beautiful in appearance, convenient for measurement, easy to carry, strong and durable. The tripod installation hole is left at the bottom of the detector, which facilitates the rapid placement and deployment of the instrument during operation

PRODUCT PARAMETERS

◆ Detection gas: 8 kinds can be detected at the same time

◆ Working mode: diffusion pump suction

◆ Protection class: IP66

◆ Storage: Historical data: Curve memory: with 8000 sets of data storage capacity

◆ 4G function: Gas: 8 kinds of gas meteorology: wind speed, wind direction, temperature and humidity
