Startseite ProdukteTerrorismusbekämpfungs-AusrüstungIntrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement
Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement
Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement
Kontakt

Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement

Herkunftsort: China Markenname: topsky

Detailinformationen
Lichtquellentyp: Blaues Laserlicht; lila Laserlicht anderer Name: Medizinische Isolationsmantel für den Oberteil
Maximale Erkennung: ≥ 2,5 km (Fahrzeug) Helme: 709,4 m/s
Umdrehen: 0-120rpm Fassungsvermögen des Wassertanks: 16l
Reaktionszeit der Erkennung: ≤ 2 s mit Echtzeitdetektionsfähigkeit Bohrgerät-Größe: 4/5/6/8mm
Gewicht des Hauptmotors: 28kg Helmschalen: ≥720 m/s
LCD-Display: 2.0-Zoll-Full-HD-Display Verfügbarkeit: Erhältlich weltweit
Leistung: 24V Bremsentfernung: ≤ 0,11 m
Kontrollweg: Batteriebetrieben
Hervorheben:

Intrinsically Safe Infrared Thermal Imager

,

Real-time Detection Thermal Imaging Device

,

Multi-point Temperature Measurement Mine Safety Equipment

Produkt-Beschreibung

Mine-used Intrinsically Safe Infrared Thermal Imager
Product Overview
The YRH800 mine-used intrinsically safe infrared thermal imager is designed for thermal imaging and temperature measurement in coal mine environments. It employs a non-cooled focal plane infrared detector to present infrared thermal spectrum data in high-definition, high-sensitivity pseudo-color image format with multi-point temperature measurement capability.
Images, videos, and voice recordings can be stored on a Micro SD card for in-depth computer analysis and statistical processing. Suitable for all personnel including technicians, operators, and managers in explosive hazard environments.
Key Applications
  • Detection of high-temperature areas and real-time temperature difference imaging
  • Identification of coal seam spontaneous combustion areas in ventilation work areas
  • Search and rescue operations for locating trapped personnel in dark conditions
Technical Specifications
Display & Resolution Digital display with resolution ≥0.1°C, capable of indicating positive/negative values
Operating Modes Photo mode and temperature measurement mode with photo/video recording capability
Data Management Storage, recall, deletion, and playback functions
Temperature Measurement Maximum, minimum, and average temperature measurement for points, lines, and surfaces
Display Options Multiple pseudo-color and color scale display options
Alarm Functions High-temperature alarm, low-temperature alarm, preset temperature alarm with adjustable alarm points and emissivity settings
Focusing System Manual and automatic focusing functions
Interface Features Background light switch, brightness adjustment, °C/°F conversion, trigger lock
Operation Interface Physical keyboard with Chinese menu operation interface
Performance Characteristics
  • Repeatability: ≤0.5°C
  • Alarm accuracy: Alarm display value within ±1.0°C of set value
  • Audible alarm function when temperature exceeds preset points
Power & Safety Specifications
Battery Module Model PL123450, rechargeable, two 1600mAh manganese oxide lithium batteries
Electrical Parameters Maximum open-circuit voltage: 8.4V DC; Maximum short-circuit current: 1.6A
Explosion-proof Certification Mine intrinsically safe type, explosion-proof mark: Ex ibⅠMb
Construction ABS + silicone shell
Weight 1.0kg
Dimensions 283×103×160mm
Protection Rating IP54

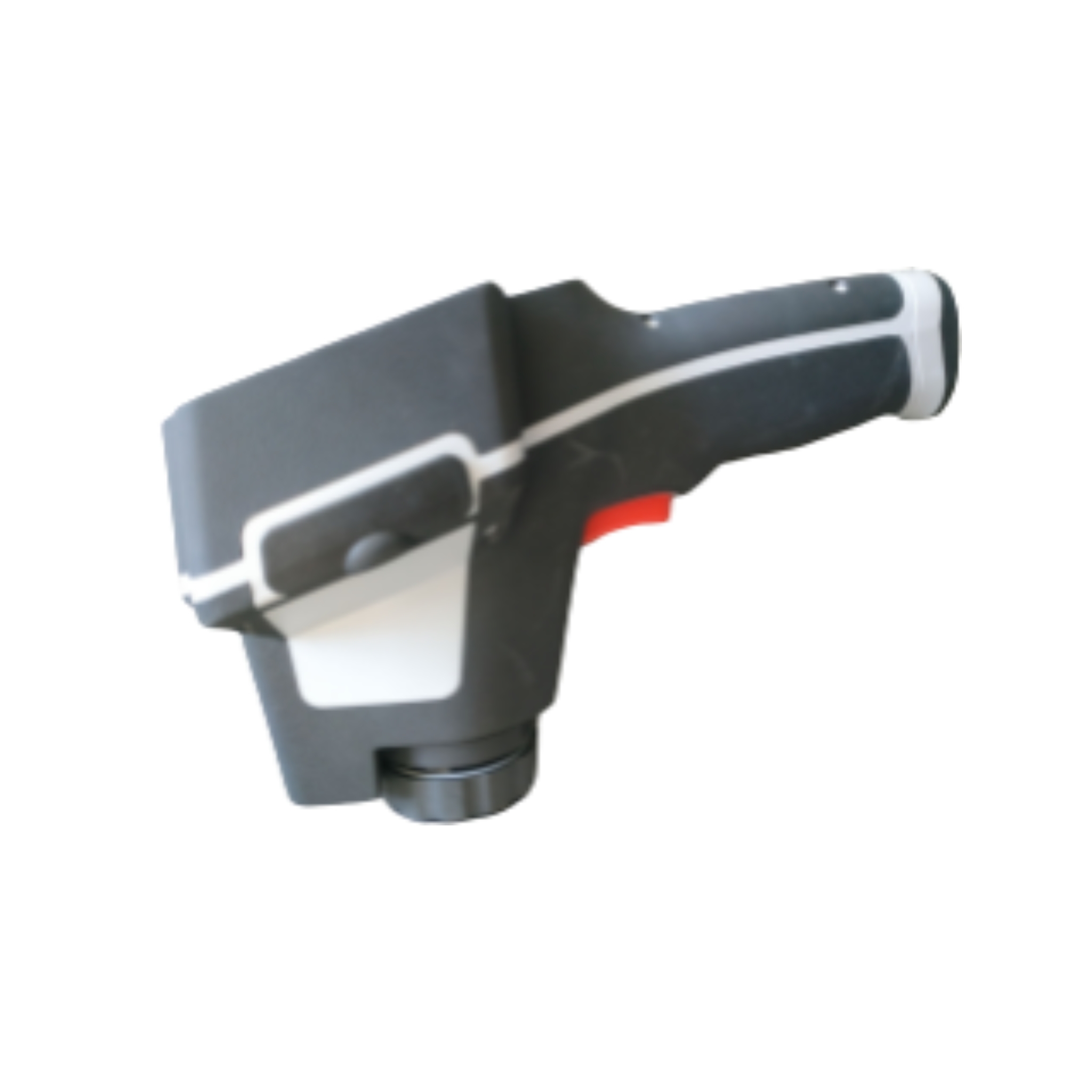

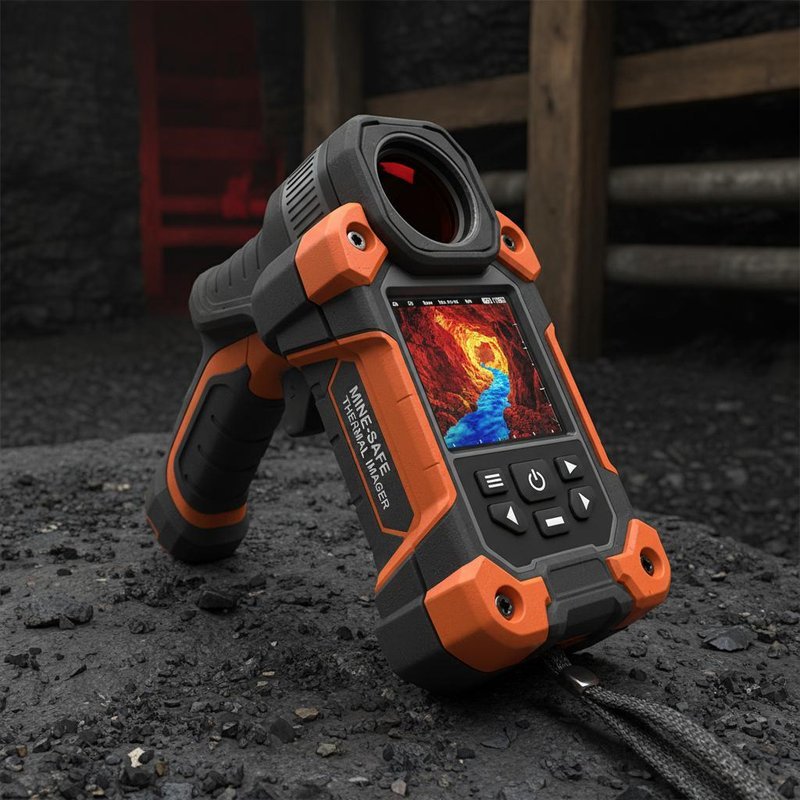

Product Images
Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement 0 Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement 1 Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement 2 Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement 3
