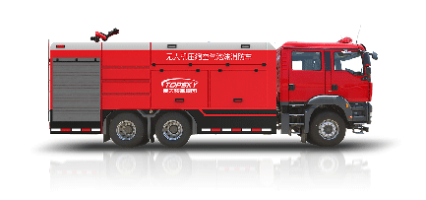

Capable of breaking windows UAV compressed air foam fire truck One click release
Capable of breaking windows UAV compressed air foam fire truck One click release Capable of breaking windows UAV compressed air foam fire truck One click release Capable of breaking windows UAV compressed air foam fire truck One click release
Kontakt

Capable of breaking windows UAV compressed air foam fire truck One click release

Minimum Order Quantity : 1set Preis : USD390000
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Markenname: Topsky
Model Number: AP90

Detailinformationen
Dimensions: 11500 × 2550 × 3950mm Maximum net power of engine: 341kw
Top speed: 90km/h Total weight: 33000kg
Liquid carrying capacity: 8400L water+600L foam liquid Fuel: diesel

Produkt-Beschreibung

.1 Vehicle parameters:
1. Basic function: It has the functions of efficient fire extinguishing and high-altitude window breaking
2. Adopting a 6 × 4 fire-fighting special chassis
3. Equipped with air conditioning for heating and cooling
4. Electric controlled windows, double row four door doors, central locking system inside the car, remote key control
5. The driver's cabin has 2+4 passengers and is equipped with seat belts
6. Equipped with a remote monitoring system (optional) to achieve real-time monitoring and scheduling of vehicle status remotely
7. Lighting fixtures are installed at the rear and on both sides of the carriage to provide reliable illumination for the loading and unloading of the box. The rear and doors on both sides of the carriage can be opened upwards
4.2 Vehicle parameters:
1. Vehicle brand: Shandeka
2. Chassis model: ZZ5356V524MF5
3. Maximum net power of engine: ≥ 341kW
4. Top speed: ≥ 90km/h
5. Total weight: ≤ 33000kg
6. Dimensions (length × width × height): ≤ 11500 × 2550 × 3950mm
7. Approach angle/departure angle: ≥ 19/8 (°)
8. Liquid carrying capacity: 8400L water+600L foam liquid
9. Engine power: ≥ 341kw (465Ps)
10. Emission standards: China VIB
11. Fuel: diesel;
12. light alarm
1) Install flashing red long row warning lights on the top of the cab
2) Install a power ≥ 100W alarm (with engineering sound alarm, including microphone and speaker) and a warning light controller in the driver's cab
13. Electrical Circuit
1) Vehicle driving electricity and dedicated device electricity systems are equipped with separate safety/power-off switches
2) The vehicle's wiring is neatly arranged, securely fixed, and equipped with measures to prevent short circuits/disconnections; The cross-sectional area of the additional electrical system wires matches the maximum load. Multiple wires are wrapped into strands, and each wire is wrapped into strands. Each wire has a number and different color differences, and connectors are used for connection
4.3 Car parameters:
1. Composition of the carriage: It consists of an unmanned engine room, a tank, and a fire pump room, with the unmanned engine room, tank, and fire pump room located behind the driver's cab in sequence
2. Drone release method: The unmanned cabin behind the cab adopts a split top cabin form, and the drone automatically lifts and lowers the platform to achieve one click deployment and release
3. Equipment racks are installed on both sides of the pump room, which can be used to place fire-fighting equipment, connectors, and water hoses
4. Carriage material: The equipment box frame is made of high-strength aluminum alloy profiles, the outer cover is made of aluminum alloy plates, and the bottom is made of aluminum alloy patterned plates
4.4 Drone system parameters:
1. Maximum takeoff weight: ≥ 210kg
2. Maximum payload: ≥ 100kg
3. Flight endurance:>55min (unloaded)>15min (fully loaded)>35min (50kg)
4. Maximum flight speed: ≥ 15m/s
5. Maximum wind resistance level: Level 6
6. Power battery: 18S 36000 * 6
7. High precision navigation system: GPS+RTK positioning
8. Wheelbase: ≤ 3300mm (± 20)
9. Product Material: Carbon Fiber+Aviation Aluminum Alloy
10. Propeller: 48 inch carbon fiber folding propeller
11. Maximum climbing speed: ≥ 5m/s
12. Maximum descent speed: ≥ 3 m/s
13. Maximum takeoff altitude: 4000m
14. Working temperature: -20 ºC~50 ºC
15. Takeoff and Landing Method: Automatic Vertical Takeoff and Landing
16. Unfolding size (mm): 1855 × 2640 × 1260 (± 20)
17. Empty weight: ≤ 55kg (excluding battery weight)
18. Remote control distance: 5-20km (ground to air, line of sight)
19. Number of rotors: 6 axes, 12 rotors
20. Land and Air Amphibious: ★ Structural Form: Designed with a land and air amphibious structure, the bottom of the fuselage is equipped with 4 walking wheels, which can be remotely controlled for land travel; Drone land travel speed: ≥ 2m/s. Remote control: The drone remote control and land travel remote control use one remote control. The parameters need to be consistent with the testing report issued by a third-party testing agency with qualifications for rotor unmanned aerial vehicle inspection, and the cover of the testing report should have CMA and CNAS marks. This ★ parameter needs to be consistent with the testing report issued by a third-party testing agency with qualifications for rotor unmanned aerial vehicle inspection. The cover of the testing report should have CMA and CNAS logos, and the testing report should be stamped with the product manufacturer's official seal (fresh seal) as proof; At the same time, provide the authorization certificate and authorization scope details issued by the market supervision department to third-party testing institutions, covering the testing of rotary wing unmanned aerial vehicles.
4.5 Technical parameters of drone remote control
1. Size (antenna retracted): 189 * 138 * 41mm
2. Weight (including battery and antenna): 850g ± 20g
3. Channels: 13 physical channels and 16 communication channels
4. Display: 5.5-inch 1080P high-definition high brightness LCD touch screen display
5. Communication distance: 15km (no interference, no obstruction)
6. System configuration: Android 9.0, 2GB RAM, 16GB storage space
7. Charging time: 5h (PD 20W fast charging)
8. Homework endurance: 10h
9. Protection level: IP53
10. Real time broadcasting of ground station battery level, communication link, drone status, and low battery voice.
4.6 Unmanned aerial vehicle airborne high-level water hose spray module
1. Weight: 650g
2. Medium: water, compressed air foam, type B foam
3. Lift height: water ≥ 35m, compressed air foam ≥ 120m, Class B foam mixture ≥ 45m.
4. Spray distance: ≥ 15 meters;
5. Jet flow rate: ≥ 135 L/min
6. Nozzle diameter: ≥ 10mm:
7. Work pressure: ≤ 2 Mpa
4.7 Unmanned Aerial Vehicle Onboard Window Breaker Module (Window Breaker)
1. Launch aperture: ≥ φ 60mm;
2. Input working voltage: DV10V~25V;
3. Input working current: ≥ 50mA
4. Launch method; Electric control command
5. Fire extinguisher glass breaking ability: Penetrating 16mm thick tempered glass within 18 meters;
6. Effective range; ≤ 50 meters
4.8 Compressed air foam system parameters:
1. Work pressure: 0.8Mpa
2. Jet flow rate: ≥ 600 L/min
3. Output caliber: ≥ DN65
4. Drive mode: Chassis main power take-off
5. Mixing ratio: 0.1-6%
6. Adjustment accuracy: 0.1%
7. Foaming ratio (dry foam/wet foam): 15/6
8. foam concentrate flow: 0-18L/min (adjustable)
9. Pump flow rate: ≥ 4800L/min
10. Air compressor parameters: displacement ≥ 5500L/min
11. Temperature range for use: 0 ºC to 55 ºC
4.9 Water hose and interface parameters
1. Hose diameter: DN25 Hose: 25mm (water, Class B foam mixture) DN40 Hose: 40mm (compressed air foam)
2. Water hose length: DN25 30 meters x 4 reels and DN40 30 meters x 4 reels
3. Work pressure: 2.0Mpa (DN25 hose) 3.0Mpa (DN40 hose)
4. Interface: DN25 forged external buckle forest to DN65 card interface DN40 forged external buckle forest to DN65 card interface DN25 to DN40 forged external buckle forest interface, 1 each
